Installing & Configuring the JAMS Cross-Platform Client

The JAMS Cross-Platform Client provides command-line access to the JAMS Scheduler using multiple platforms. It allows users to execute JAMS commands via scripting and the command line by leveraging the JAMS REST API.

Requirements​

To work with the JAMS Cross-Platform Client, you will need to meet the two requirements below:

  • Have a valid URL to an installed version of the JAMS REST API.
  • A login account with the appropriate permissions for a JAMS Server instance, from which the client can authenticate against multiple JAMS server.

Prerequisites​

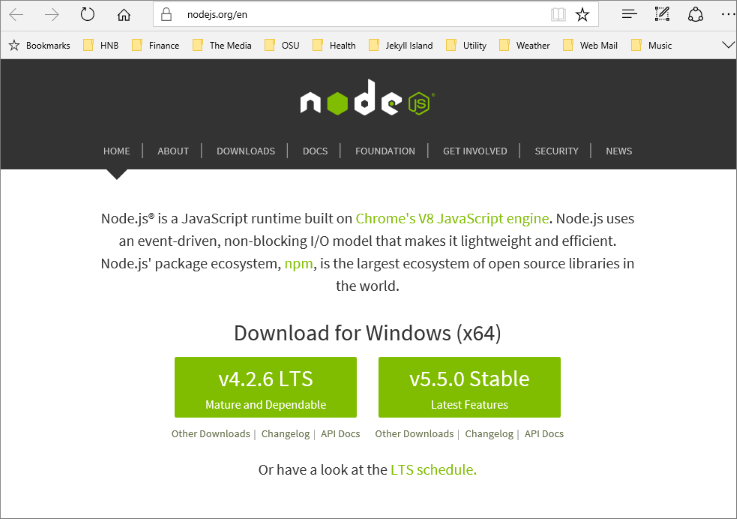

To get started, install the JavaScript runtime node.js at http://nodejs.org and download the latest version of 4.2.x or 5.5.x. The current version has been tested against versions 4.2.6 and 5.5.0.

Configuration Process​

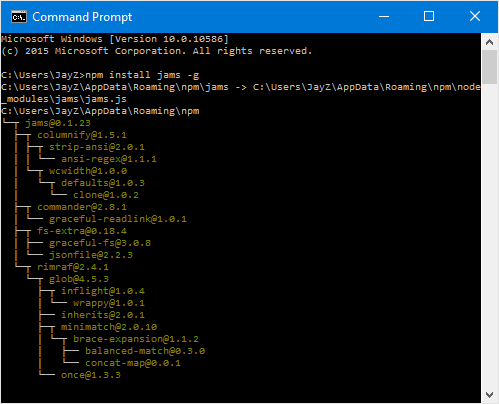

To install the JAMS Cross-Platform Client globally onto your local machine, open the command prompt and enter the following command:

npm install jams -g
note

Excluding the global parameter (-g) will install the client in the following location:<current directory>\node_modules\jams

note

The client should be installed globally if it is to be executed from the command line. Otherwise, commands will be executed from within the node_modules/jams directory of the installed location.

Unix-based Systems​

If you are installing locally on a Unix-based system, client commands must be invoked by "./jams.js" instead of "jams" (see the example below). This is not necessary if the client is installed globally.

Global Installation Example​

jams login -u user123 -p password123

Local Installation Example​

./jams.js login -u user123 -p password123

Next, enter the command below to set the active JAMS REST API location for the client.

jams set admin -n server -s (url of JAMS REST API)
note

If utilizing a non-standard HTTP/HTTPS port, ensure the URL is updated as such.

If port is defined as 1234, the API URI must must be referenced as:

http://myserver:1234/JAMS/api

Set Active JAMS REST API Example​

jams set admin -n server -s http://myserver.1235/JAMS/api

note

The admin server setting can be overwritten with a -r parameter at command execution.

note

The client can only be authenticated with one server at a time. Changing servers requires a login prior to any command execution.

Setting the active JAMS REST API Example​

jams login -u user123 -p password123 -r http://myserver.1235/jams/api
jams submit-u user123 -n /Tests/123 -r http://myserver.1235/jams/api
note

The client can only be authenticated with one server at a time. Changing servers requires a login prior to any command execution.

Commands​

All the commands listed below are accessible from a terminal window or a command prompt.

Usage​

jams [optional action] [command] [parameters]

Options​

-h,--help Output usage information

-V,--version Output the version number

-v,--verbose Display Verbose information

-r,--server Override default JAMS server with defined location

Help Displays contextual help for client commands.

Usage​

jams -h <command>

Displays main help menu​

jams –h

Displays help for submit command​

jams –h submit

Login​

Connect to the JAMS Scheduler

Usage​

jams login -u <username> -p <password>

Login Command Example​

jams login -u testuser -p password123

Logout​

Disconnect from the JAMS Scheduler

Usage​

jams logout

Submit​

Submit a job to the JAMS Scheduler

Usage​

jams submit -n <job name> [-d <date>] [-t <time>] [-q <batch queue>] [-a <agent node>] [-p <priority>] [-o]

JAMS Submit Command Examples​

jams submit -n \Samples\Test123
jams submit -n \Samples\Test123 -s 12/11/2016 -t "03:50:00 PM" -q "queueABC" -a
"node123" -p 1 -o

Entry​

Display or manage JAMS Job entries

Usage​

jams get|hold|release entry [-i <entry id>] [-a <audit comment>]

JAMS Entry Command Examples​

jams get entry -i 12345
jams hold entry -i 12345 -a "Sample Comment"
jams release entry -i 12345 -a "Sample Comment"

Parameter​

Display or manage JAMS entry parameters

Usage​

jams get|set parameter* [-i <entry id>] [-n <parameter name>] [-s <*parameter value>]

JAMS Parameter Command Examples​

jams get parameter -i 12345
jams get parameter -i 12345 -n JAMSTraceLevel
jams set parameter -i 12345 -n JAMSTraceLevel -s "On"

Variable​

Display or manage JAMS Variables

Usage​

Usage jams get|set variable [-n <name>] [-s <value>]

JAMS Variable Command Examples​

jams get variable
jams get variable -n testvalue
jams get variable -n testvalue -s testABC

Admin​

View or modify JAMS Client settings

Usage​

jams get|set admin [-n <name>] [-s <value>]

JAMS Admin Command Examples​

jams get admin
jams get admin -n server
jams set admin -n server -s http://localhost:62405/api

Usage Notes​

A user must login prior to executing all commands save admin functions.

Usage​

jams login -u <username> -p <password>

Submitting a Job​

Submitting a Job (Unix/Linux) Example​

jams submit -n //Test//Job123

Submitting a Job (Windows) Example​

jams submit -n /Test/Job123
